- Opdrachtgever: Barkmeijer
- Plaats: Rotterdam
- Categorie: Marine Applications

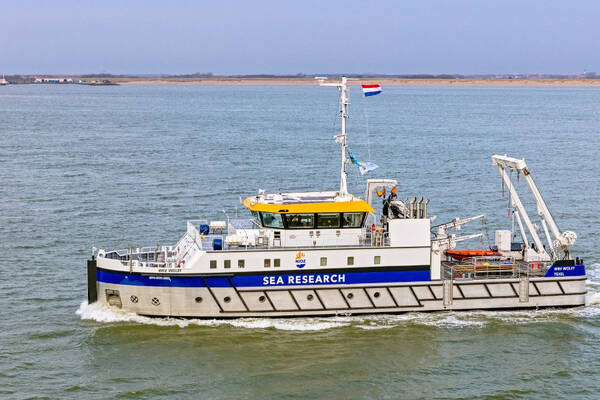

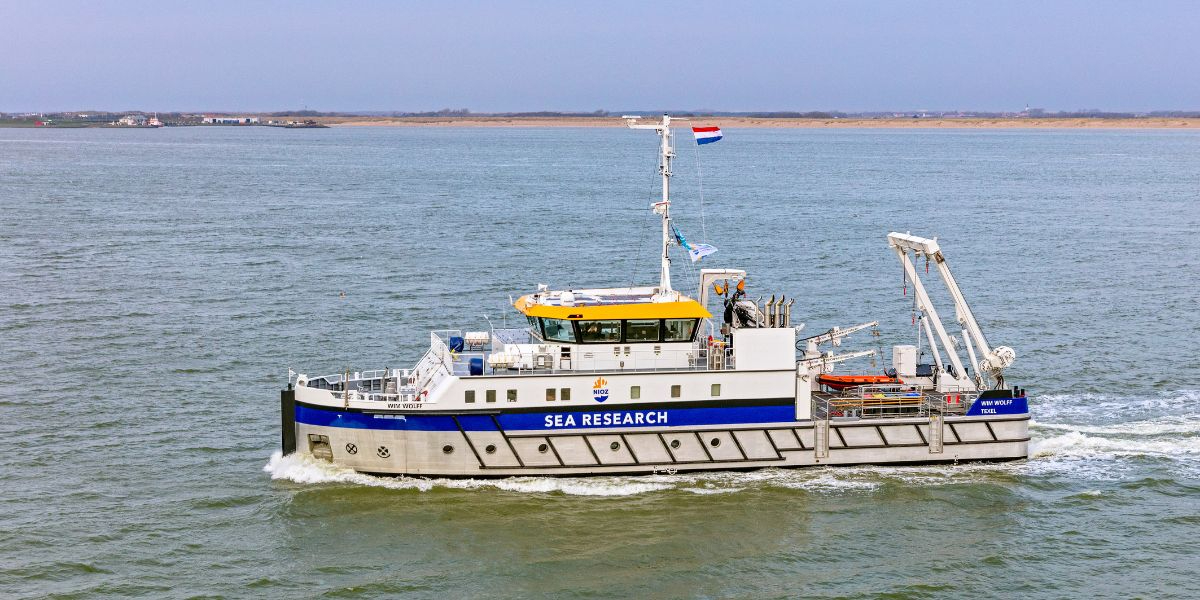

The RV Wim Wolff is a compact but highly capable coastal research vessel, optimized for shallow-water operations. Its 5-ton A-frame serves as the primary heavy-duty lifting system, while the deck cranes (up to ~1.5 tons) and 2.5-ton J-frame provide flexibility for a wide range of scientific tasks. Together, these systems make the vessel especially effective for sampling, instrument deployment, and fieldwork in dynamic coastal and tidal environments.
SPECIFICATIONS:

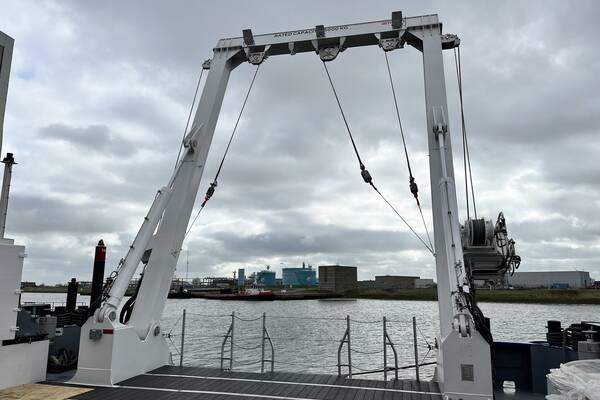

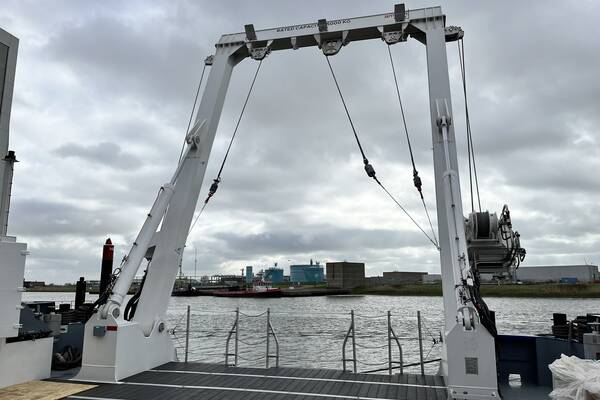

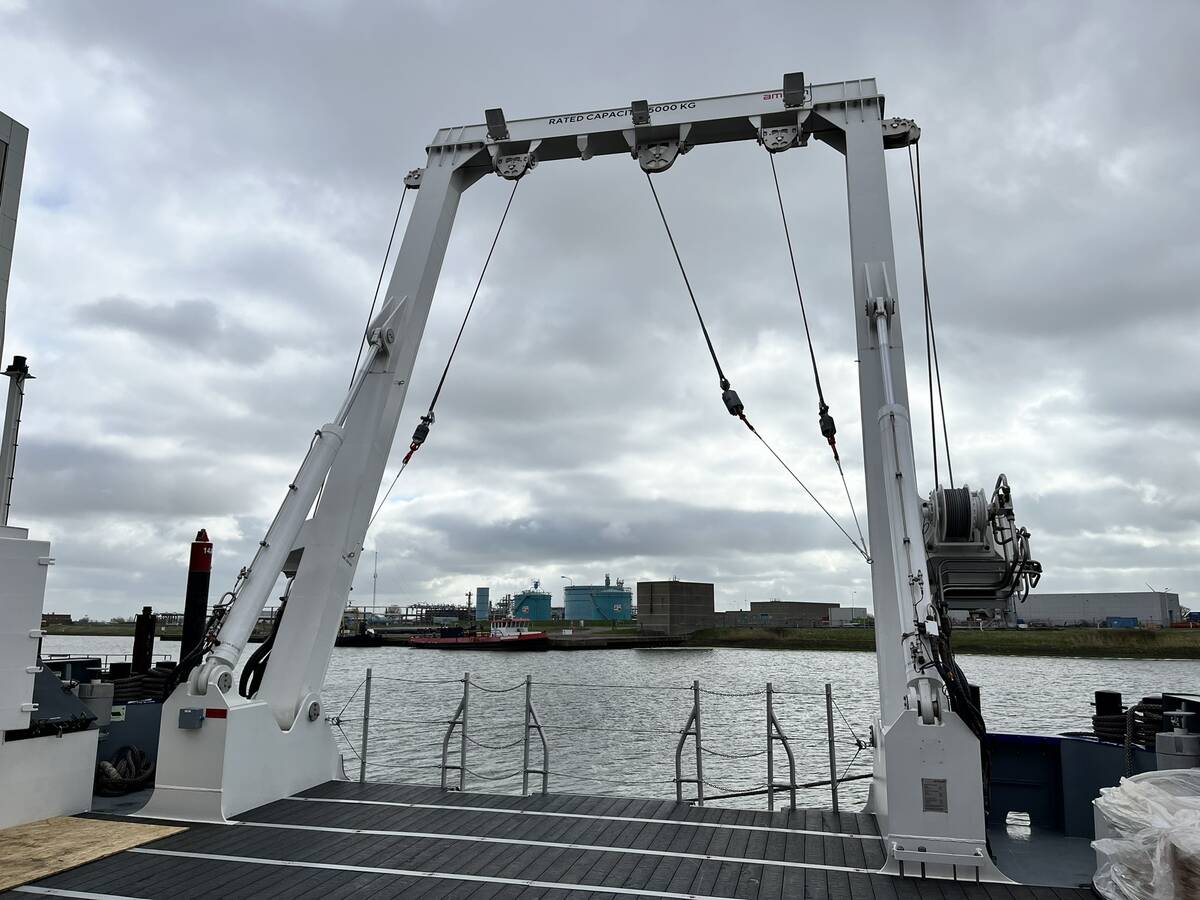

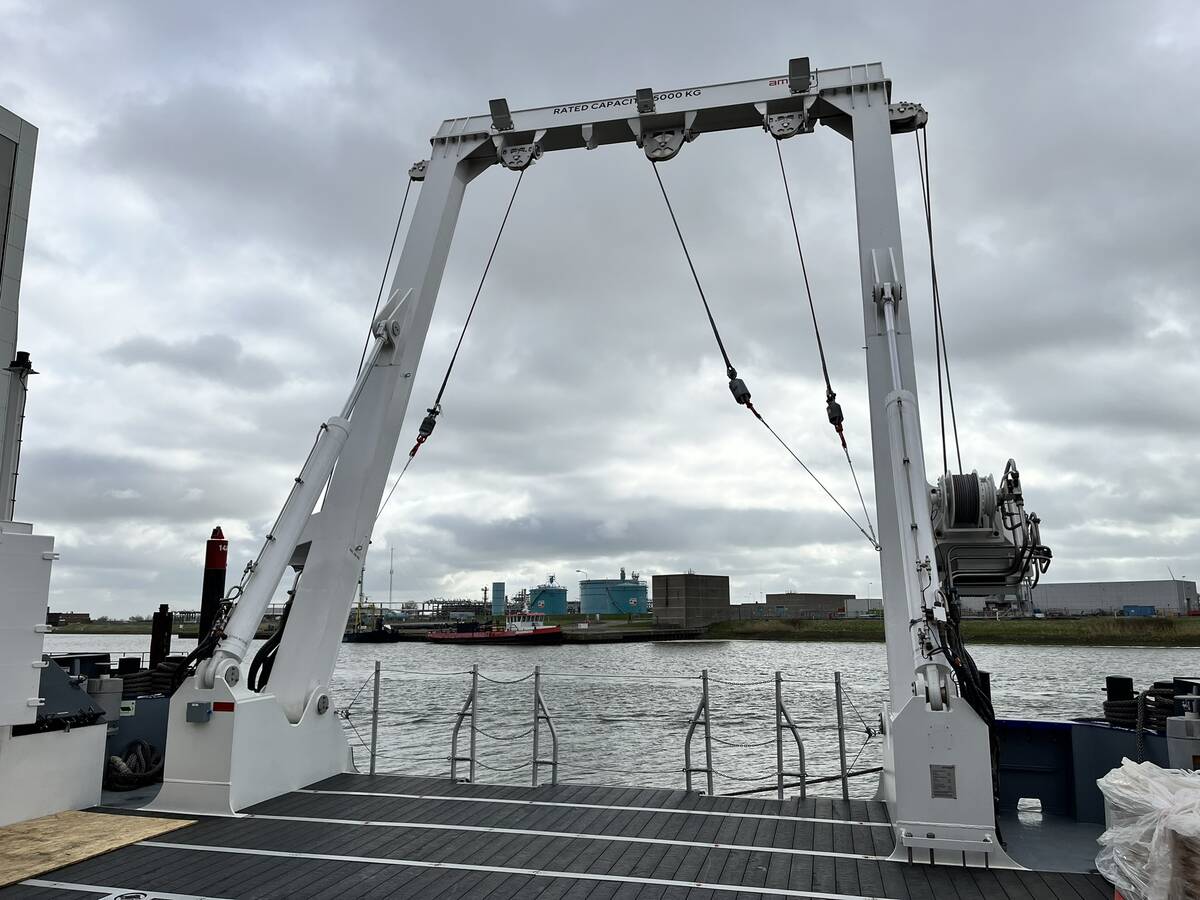

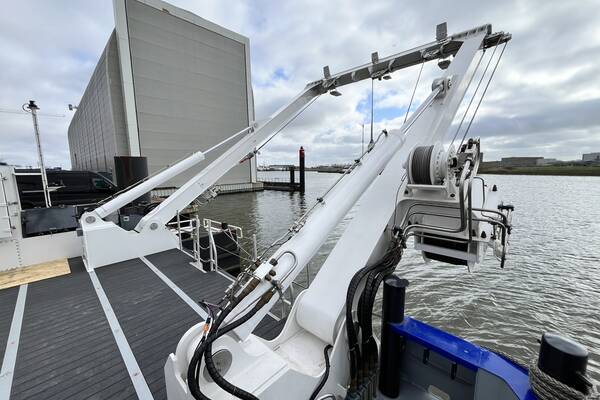

A FRAME
- Material: Alu H321 provided with 3-layer coating system
- Maximum lifting capacity: 5 tonnes
- Executed with hydraulic cylinders and winches

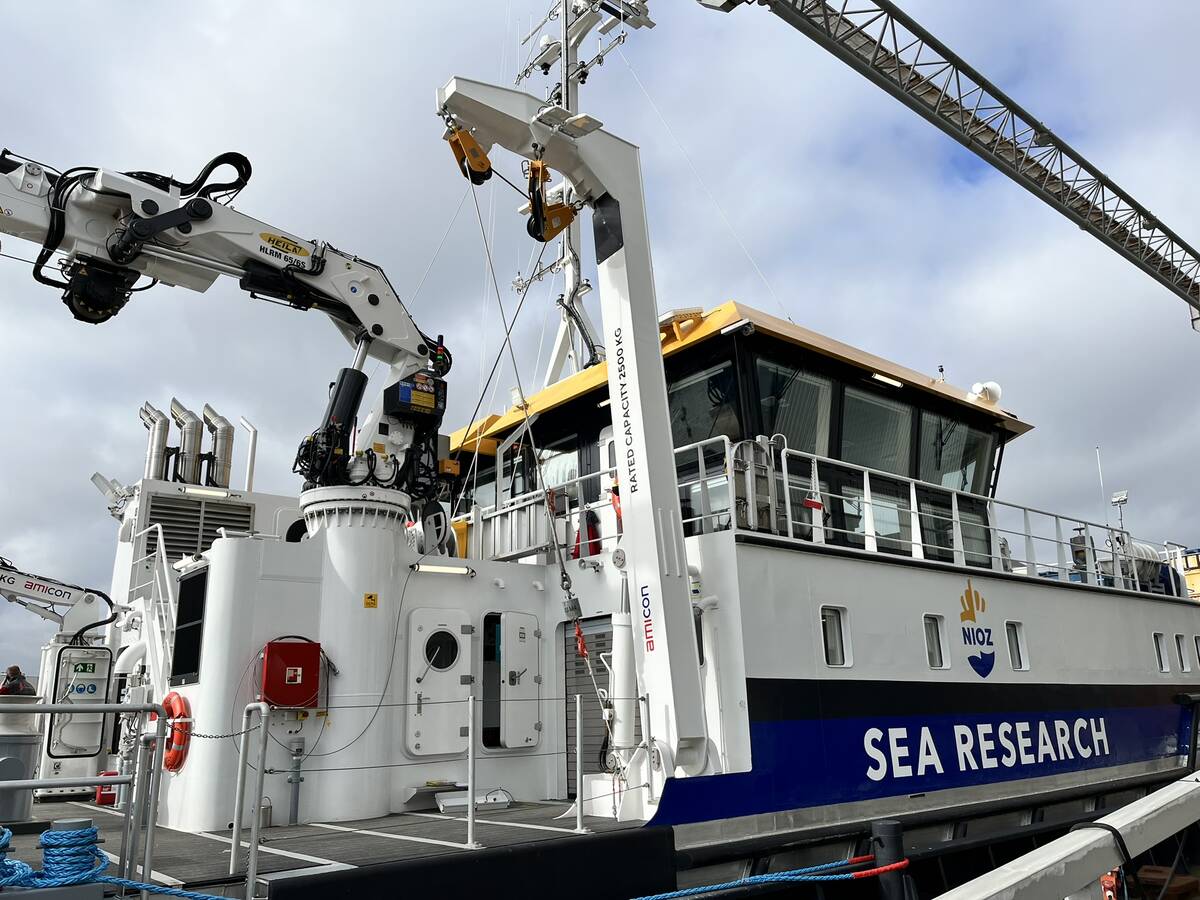

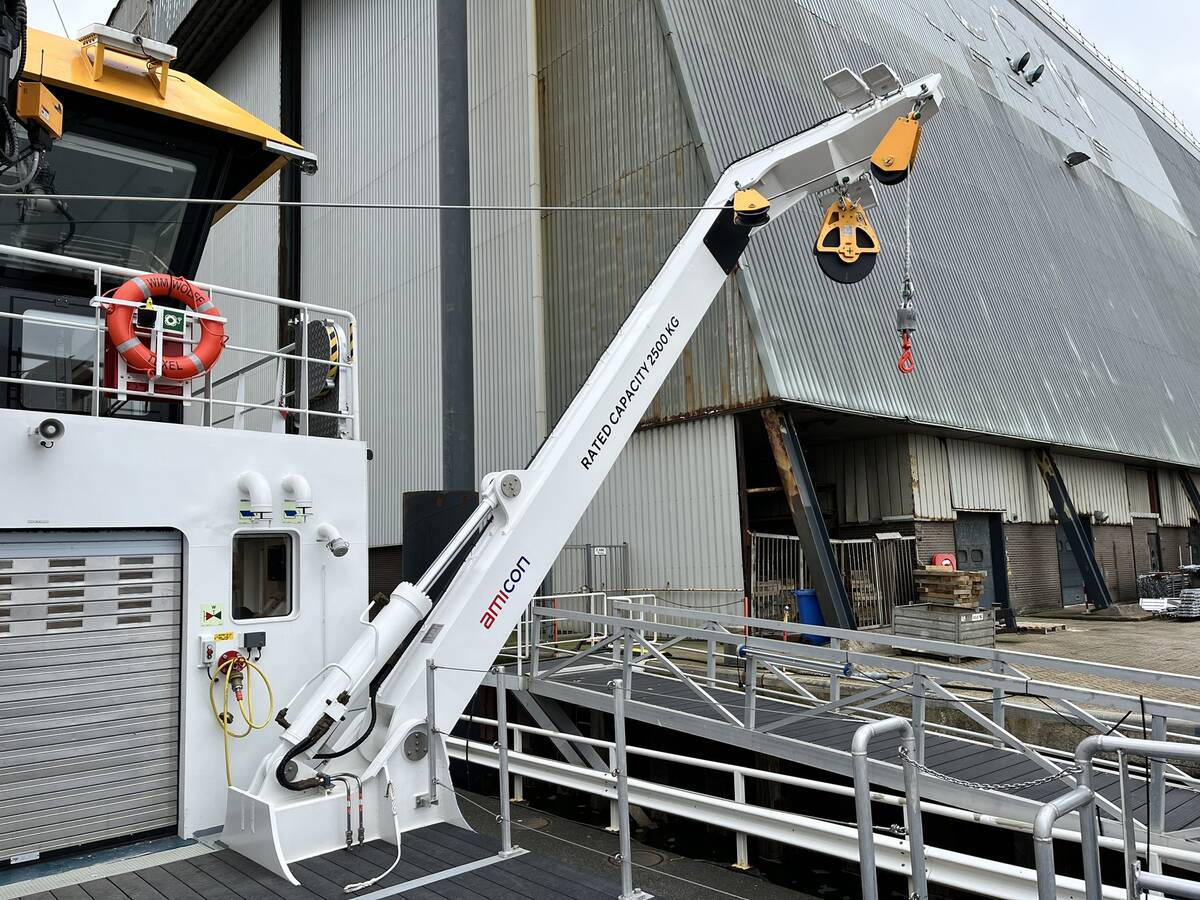

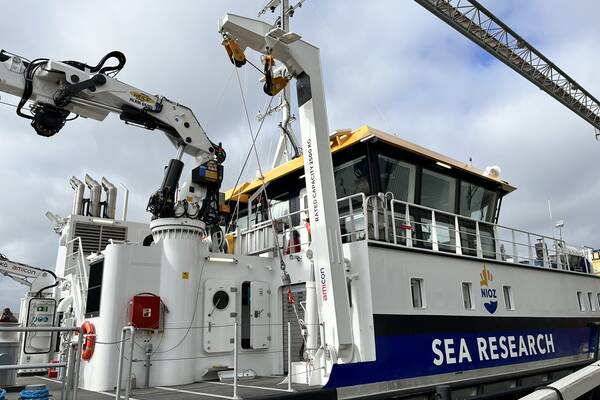

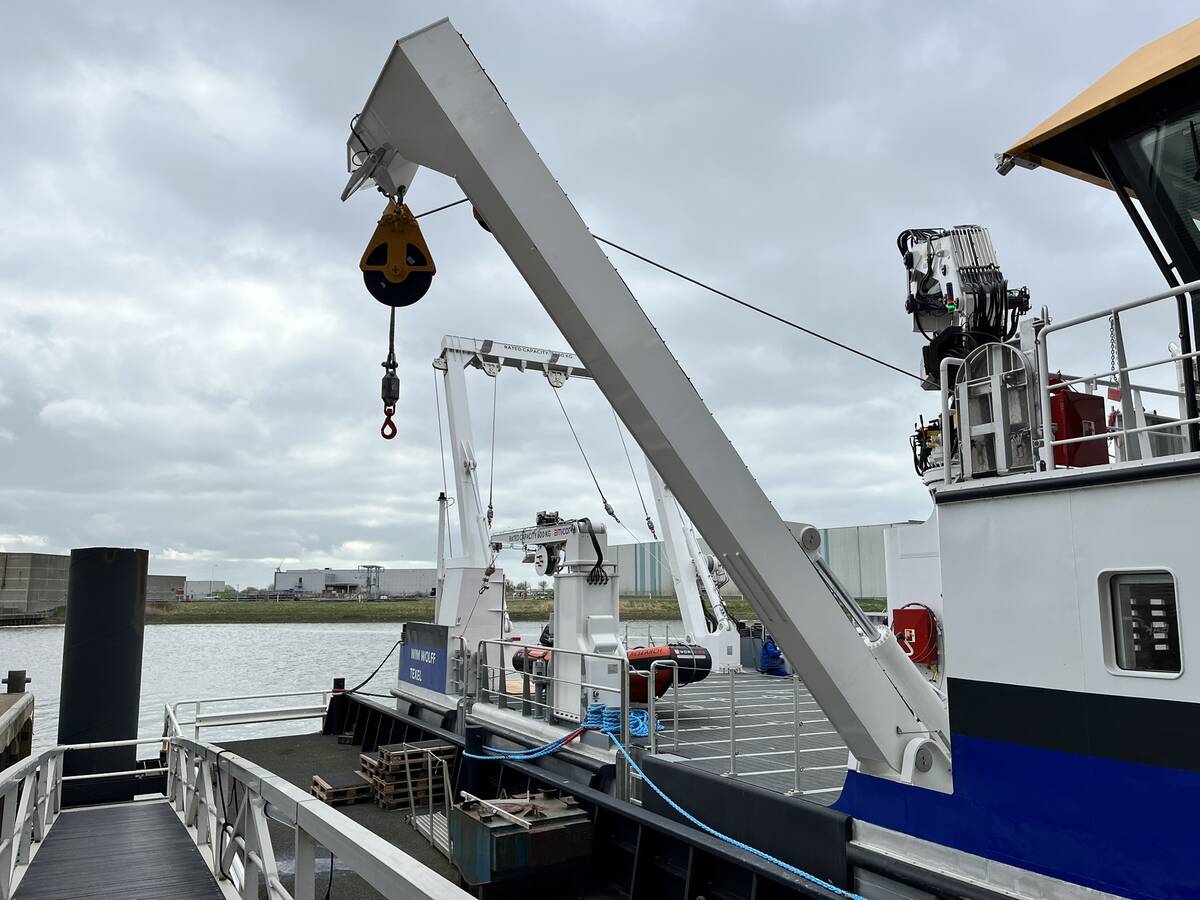

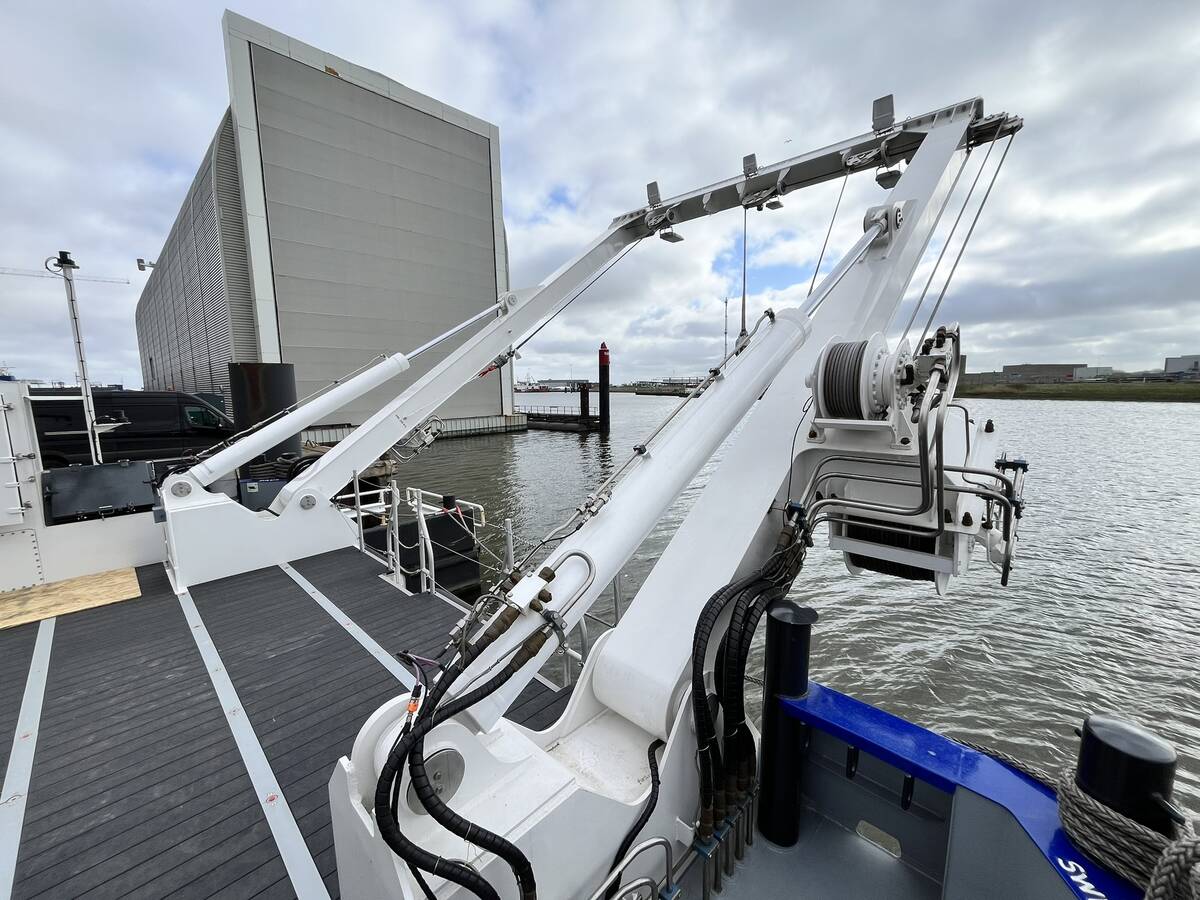

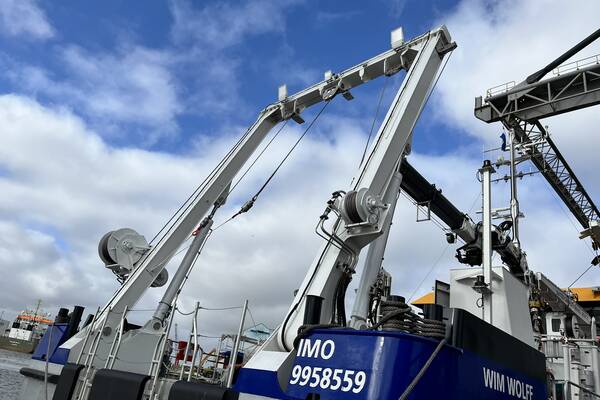

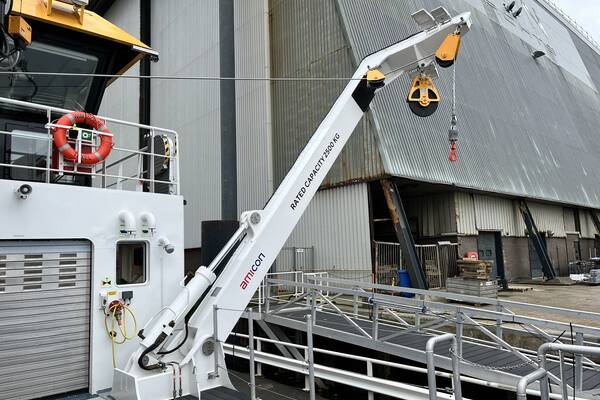

J FRAME:
- Material: Alu 321 provided with 3-layer coating system
- Driven by hydraulic cylinder
- Maximum lifting capacity: 2,5 tonnes

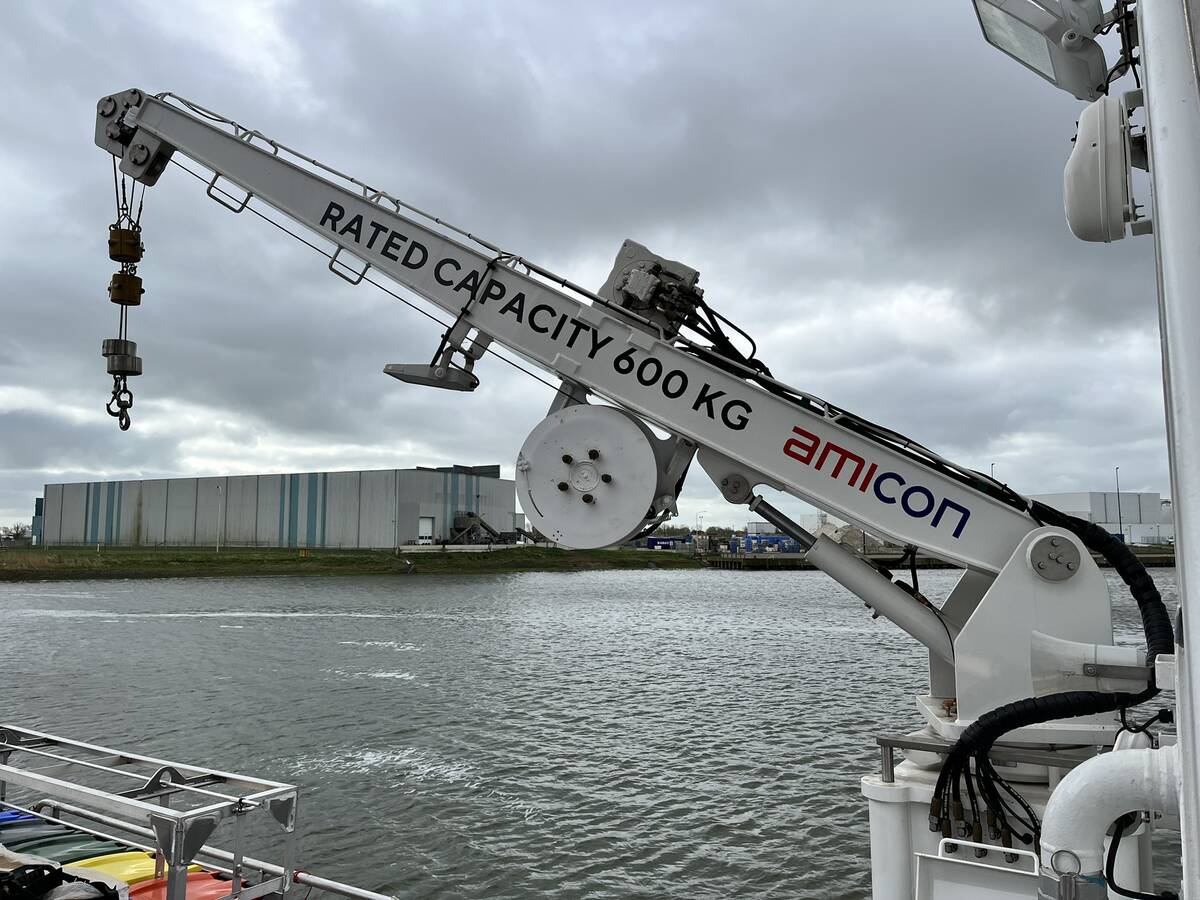

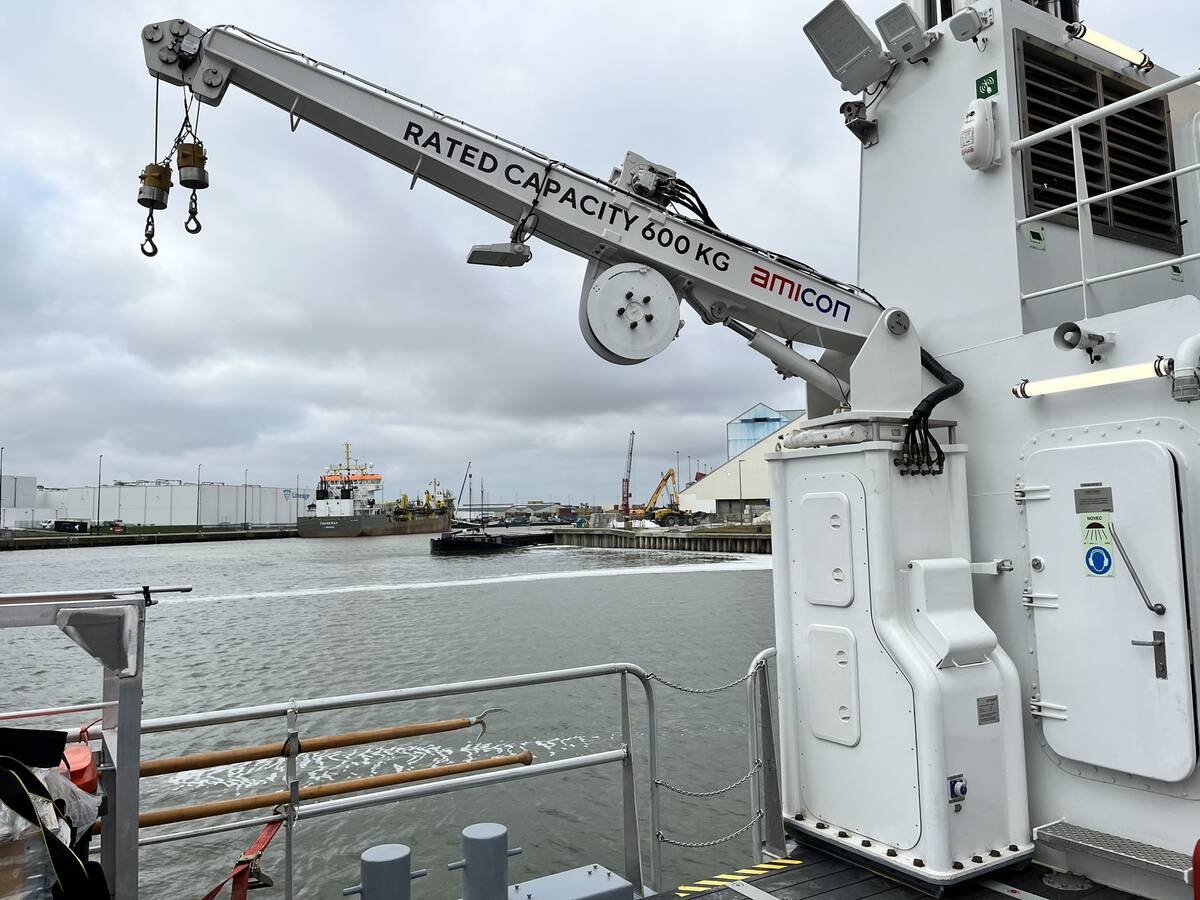

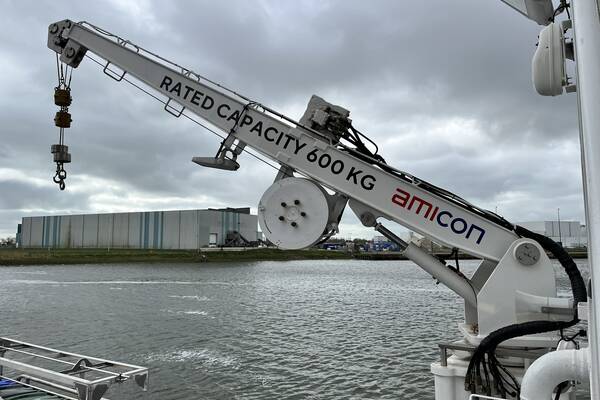

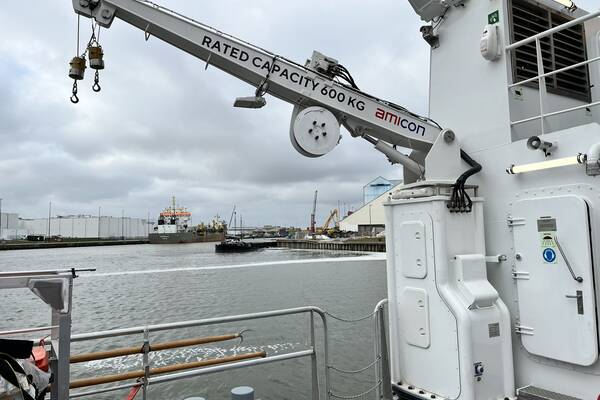

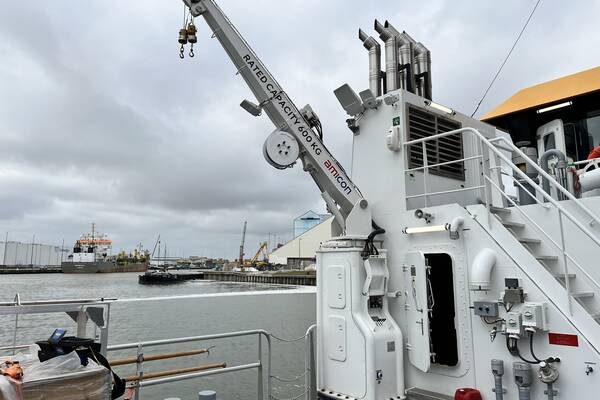

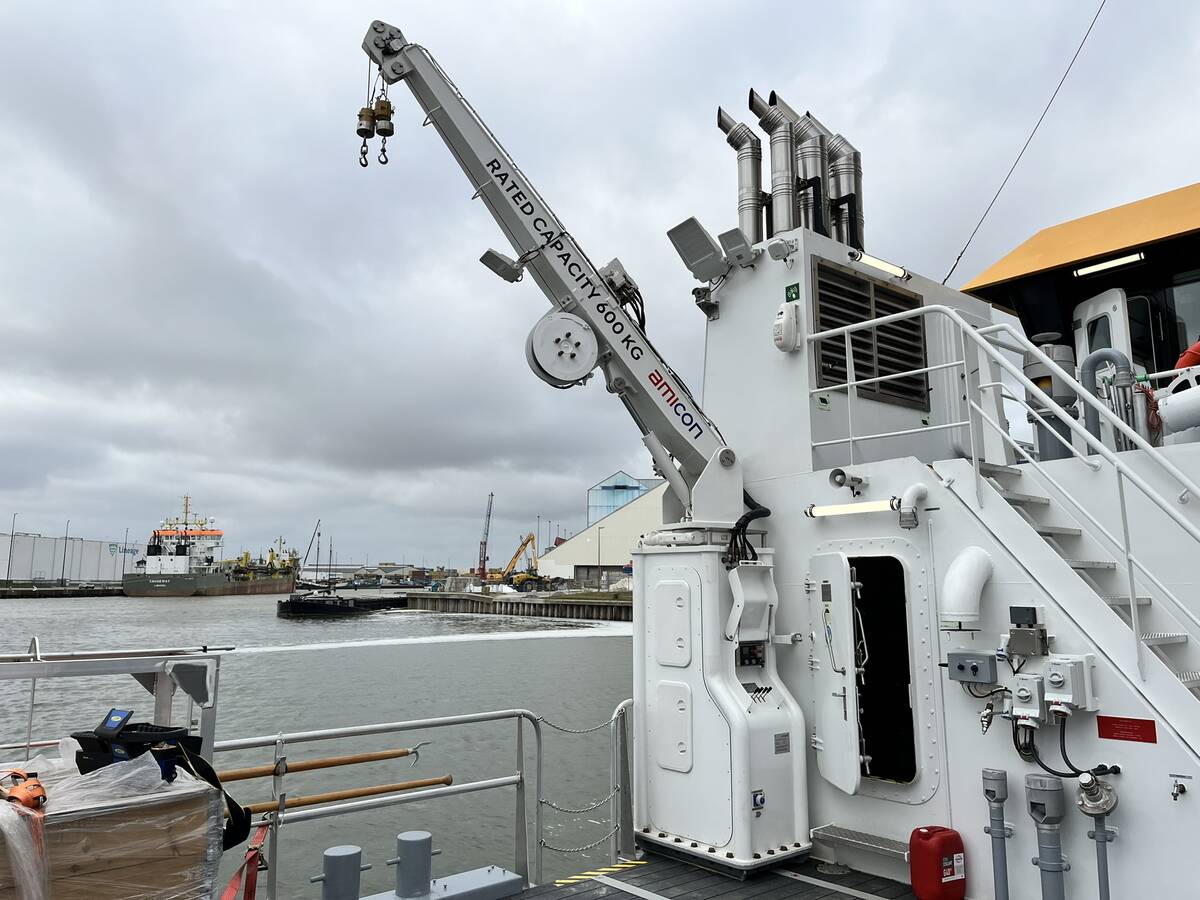

DECK CRANES:
- Material: Alu H321 provided with 3-layer coating system
- Maximum lifting capacity: 600 kg
- Driven by hydraulic cylinders, slew bearing and winches
- Integrated HPU
SCOPE:
- Developement
- Engineering
- Dynamic calculations
- Functionality tests

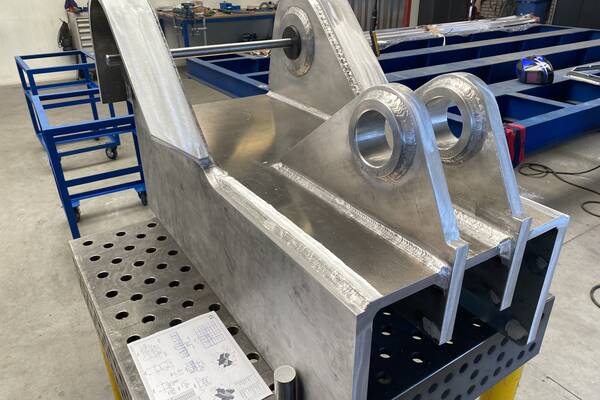

- Manufacturing support
- QA-QC and documentations
- FAT
